PE26SQ: 26-inch Penetrator with 1/2-inch square-drive flat head
- Product Overview
Product Overview

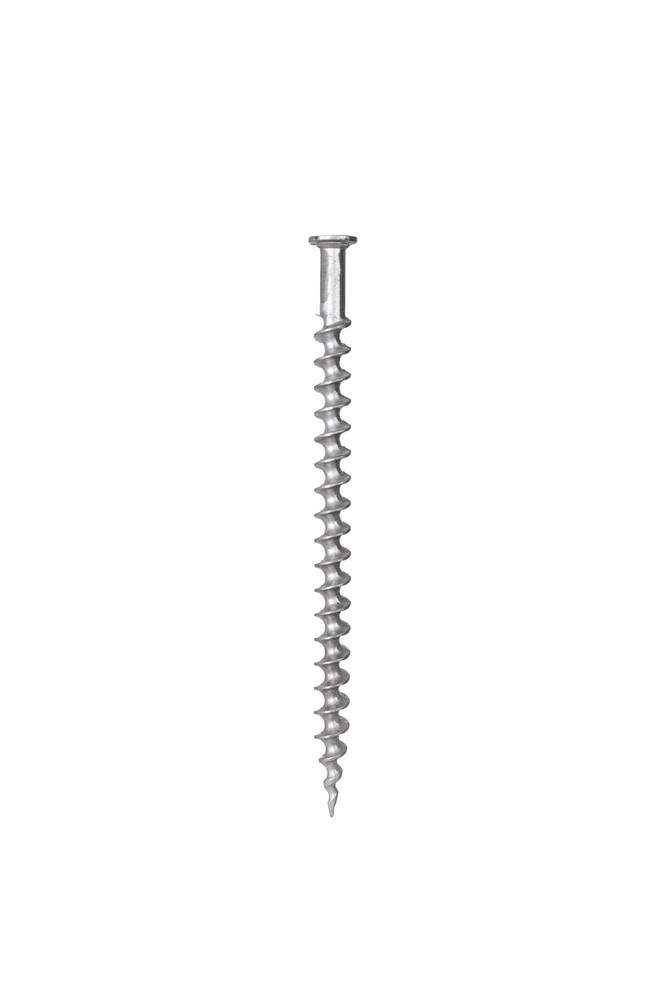

26" Penetrator anchor with 1/2" square-drive flat head.
Typically used to secure carports & shelters, generators & air conditioners, greenhouses & domes, outdoor sculptures, sheds, deer stands & hunting blinds, dog tie-out; picnic tables, RV awnings, soccer goals, tents & canopies, trampolines, swing sets, antennas and more! For temporary and permanent structures. Easy to install and remove.
Type
Penetrator
Length
26"
Head
1/2" Square Drive
Flange
2"
Flights
1-3/4"
Weight
2 lbs
Material
356 Aluminum
Part
PE26SQ
Ultimate Holding (vertical)
4,500 lbs*
Lateral Holding
510 lbs*
Base Plate Hole
1-1/2"
*Technical Products, Inc. (TPI) conducted instrumented pull tests on all products provided to us in a Class 2/3 Soil (medium sand/gravel). After the anchor was installed as per instructions an increasing load was applied orthogonal to the long axis of the anchor until the anchor failed as demonstrated by a sudden decrease in load bearing capacity. Each anchor was tested three times and results averaged. The test results are summarized in the table below. It is our professional opinion that in more cohesive and dense or better compacted soils this load bearing capacity will increase.
