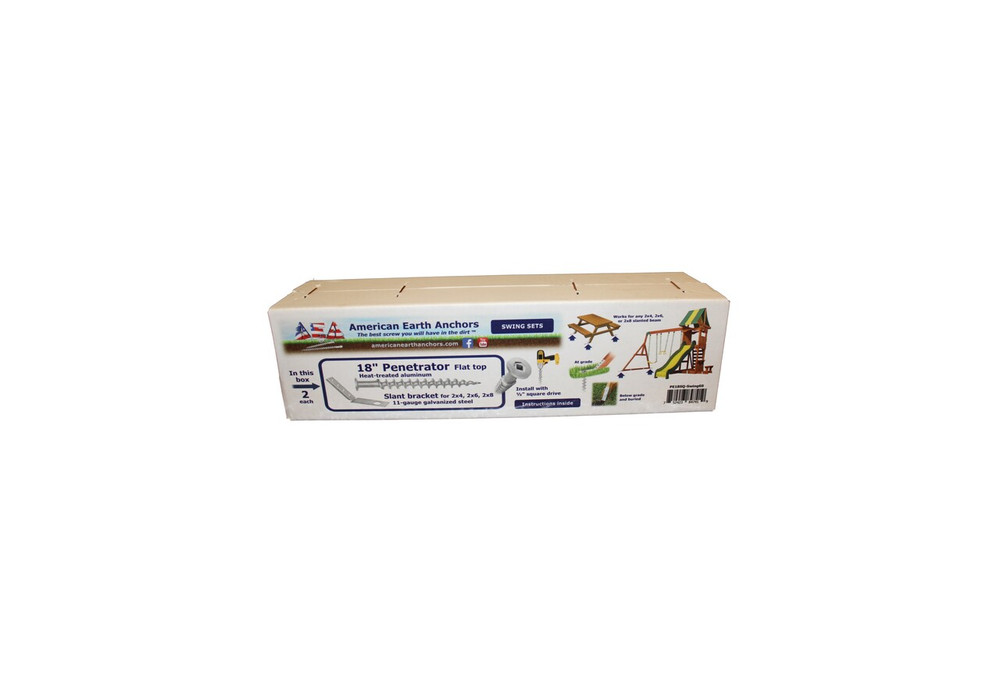

PE18SQ-Swing60: 18-inch Anchor Kit - Slant Bracket
- Product Overview
Product Overview
Anchor kit for swing sets and picnic tables. Each kit contains 2) PE18SQ Penetrators and 2) galvanized steel brackets to hold down 2x4 or 2x6-inch 60-degree angle support on edge. Each Penetrator can hold up to 2,500 lbs.
Type
Penetrator
Length
18"
Head
1/2" Square Drive
Flange
2"
Flights
1-3/4"
Weight
6 lbs
Material
356 Aluminum
Part
PE18SQ-Swing60
Ultimate Holding (vertical)
2,500 lbs*
Lateral Holding
510 lbs*
*Technical Products, Inc. (TPI) conducted instrumented pull tests on all products provided to us in a Class 2/3 Soil (medium sand/gravel). After the anchor was installed as per instructions an increasing load was applied orthogonal to the long axis of the anchor until the anchor failed as demonstrated by a sudden decrease in load bearing capacity. Each anchor was tested three times and results averaged. The test results are summarized in the table below. It is our professional opinion that in more cohesive and dense or better compacted soils this load bearing capacity will increase.
