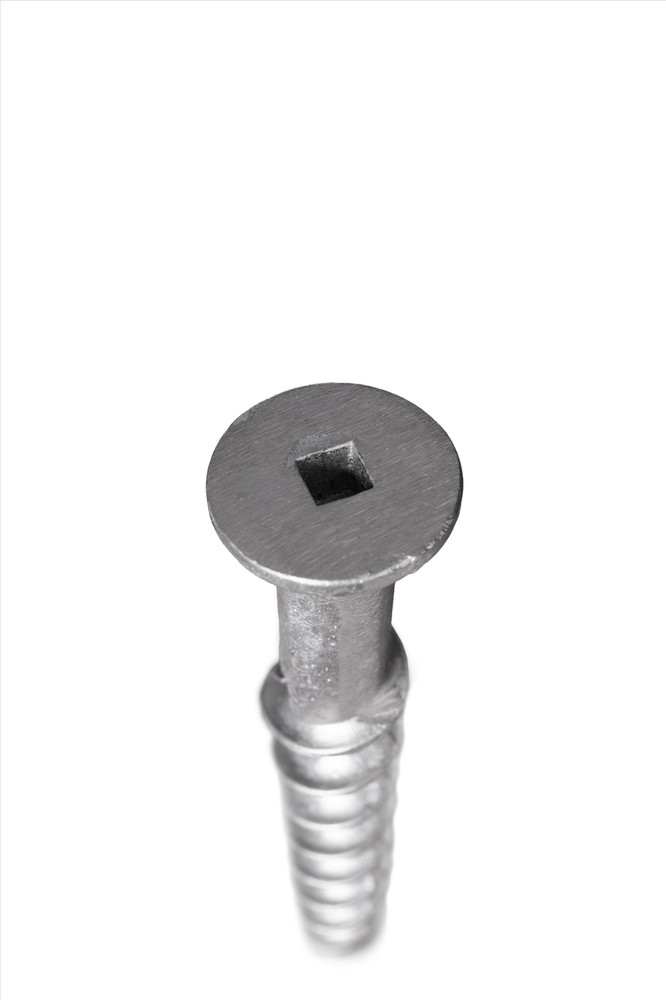

PE18SQ: 18-inch Penetrator with 1/2-inch square-drive flat head
- Product Overview
Product Overview
18" Penetrator anchor with 1/2" square drive flat top. Typically used to secure carports & shelters, greehouses, domes, outdoor sculptures, portable buildings, sheds, aircraft, inflatables, dog tie-out, RV awnings, soccer goals, swing sets, trampolines, antennas, tents & canopies, and hunting. For temporary and permnament structures. Easy to install and remove.
Type
Penetrator
Length
18"
Head
1/2" Square Drive
Flange
2"
Flights
1-3/4"
Weight
1.5 lbs
Material
356 Aluminum
Part
PE18SQ
Ultimate Holding (vertical)
2,500 lbs*
Lateral Holding
510 lbs*
Base Plate Hole
1-1/2"
*Technical Products, Inc. (TPI) conducted instrumented pull tests on all products provided to us in a Class 2/3 Soil (medium sand/gravel). After the anchor was installed as per instructions an increasing load was applied orthogonal to the long axis of the anchor until the anchor failed as demonstrated by a sudden decrease in load bearing capacity. Each anchor was tested three times and results averaged. The test results are summarized in the table below. It is our professional opinion that in more cohesive and dense or better compacted soils this load bearing capacity will increase.
