PE36-Guy: 36-inch Penetrator with 2-inch guy head
- Product Overview
Product Overview

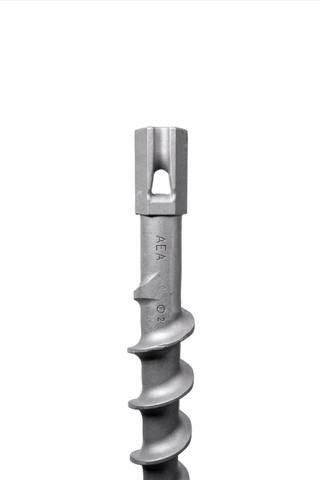

36" Penetrator anchor with 2" guying head with 1/2" slot for attachments.
Typically used for temporary shelters, zip-lines, outdoor sculptures, deer stands, duck blinds, shade sails, event tents, large canopies, towers, utility poles, deck footings, portable buildings, storage containers, beach items in sand, large inflatables, small aircraft, fish cages, sheds, tanks, docks, tree guying, greenhouses, domes, antennas.
Typically used for temporary shelters, zip-lines, outdoor sculptures, deer stands, duck blinds, shade sails, event tents, large canopies, towers, utility poles, deck footings, portable buildings, storage containers, beach items in sand, large inflatables, small aircraft, fish cages, sheds, tanks, docks, tree guying, greenhouses, domes, antennas.
Type
Penetrator
Length
36"
Head
2" Guy
Flange
N/A
Flights
3"
Weight
9 lbs
Material
356 Aluminum
Part
PE36-Guy
Ultimate Holding (vertical)
8,400 lbs*
Lateral Holding
1,520 lbs*
Base Plate Hole
2.5"
*Technical Products, Inc. (TPI) conducted instrumented pull tests on all products provided to us in a Class 2/3 Soil (medium sand/gravel). After the anchor was installed as per instructions an increasing load was applied orthogonal to the long axis of the anchor until the anchor failed as demonstrated by a sudden decrease in load bearing capacity. Each anchor was tested three times and results averaged. The test results are summarized in the table below. It is our professional opinion that in more cohesive and dense or better compacted soils this load bearing capacity will increase.
