PE46-Hex8: 46-inch Penetrator with 8-inch extended hex head
- Product Overview
Product Overview

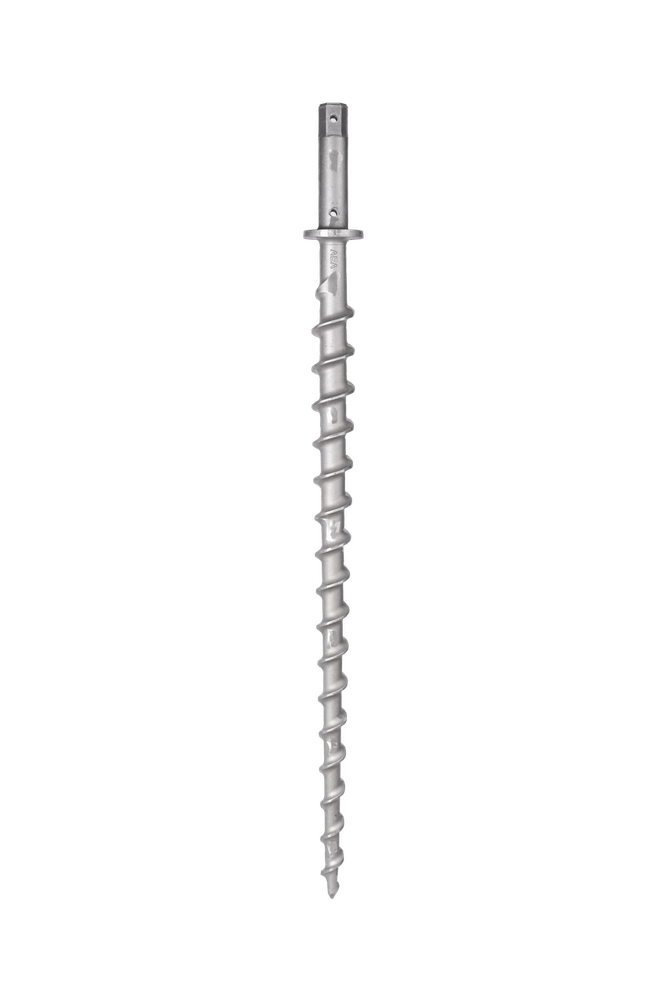

46" Penetrator anchor with 1-3/4" hex head extended 8" high.
Typically used to secure solar ground mount installations, greenhouses, domes, carports, temporary shelters, shade sails, event tents, and large canopies.
Typically used to secure solar ground mount installations, greenhouses, domes, carports, temporary shelters, shade sails, event tents, and large canopies.
Type
Penetrator
Length
46"
Head
1-3/4" Hex
Flange
4"
Flights
3"
Weight
13 lbs
Material
356 Aluminum
Part
PE46-Hex8
Ultimate Holding (vertical)
14,000 lbs*
Lateral Holding
2,300 lbs*
Base Plate Hole
2-1/2"
*Technical Products, Inc. (TPI) conducted instrumented pull tests on all products provided to us in a Class 2/3 Soil (medium sand/gravel). After the anchor was installed as per instructions an increasing load was applied orthogonal to the long axis of the anchor until the anchor failed as demonstrated by a sudden decrease in load bearing capacity. Each anchor was tested three times and results averaged. The test results are summarized in the table below. It is our professional opinion that in more cohesive and dense or better compacted soils this load bearing capacity will increase.
